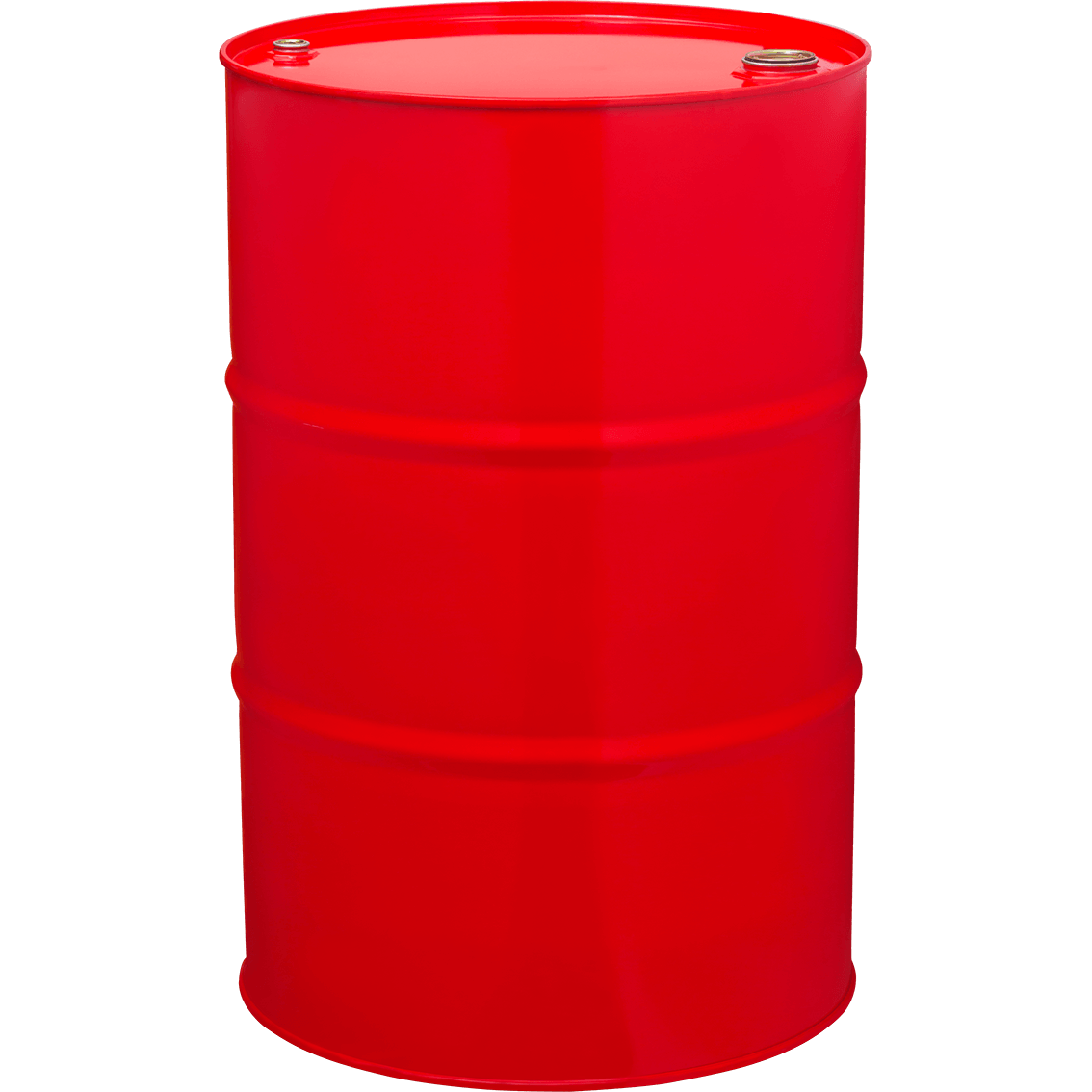

Tight Head Steel Drum
  • Steel Packaging
  • 216.5 lt volume
  • Produced of cold rolled steel sheet
  • In compliance with EN 10130 standards
  • 2” filling and 3/4” venting closure
  • Full discharge system
  • With tab seals
  • Conventional body or corrugations upon request
  • 100 % leakproofness test

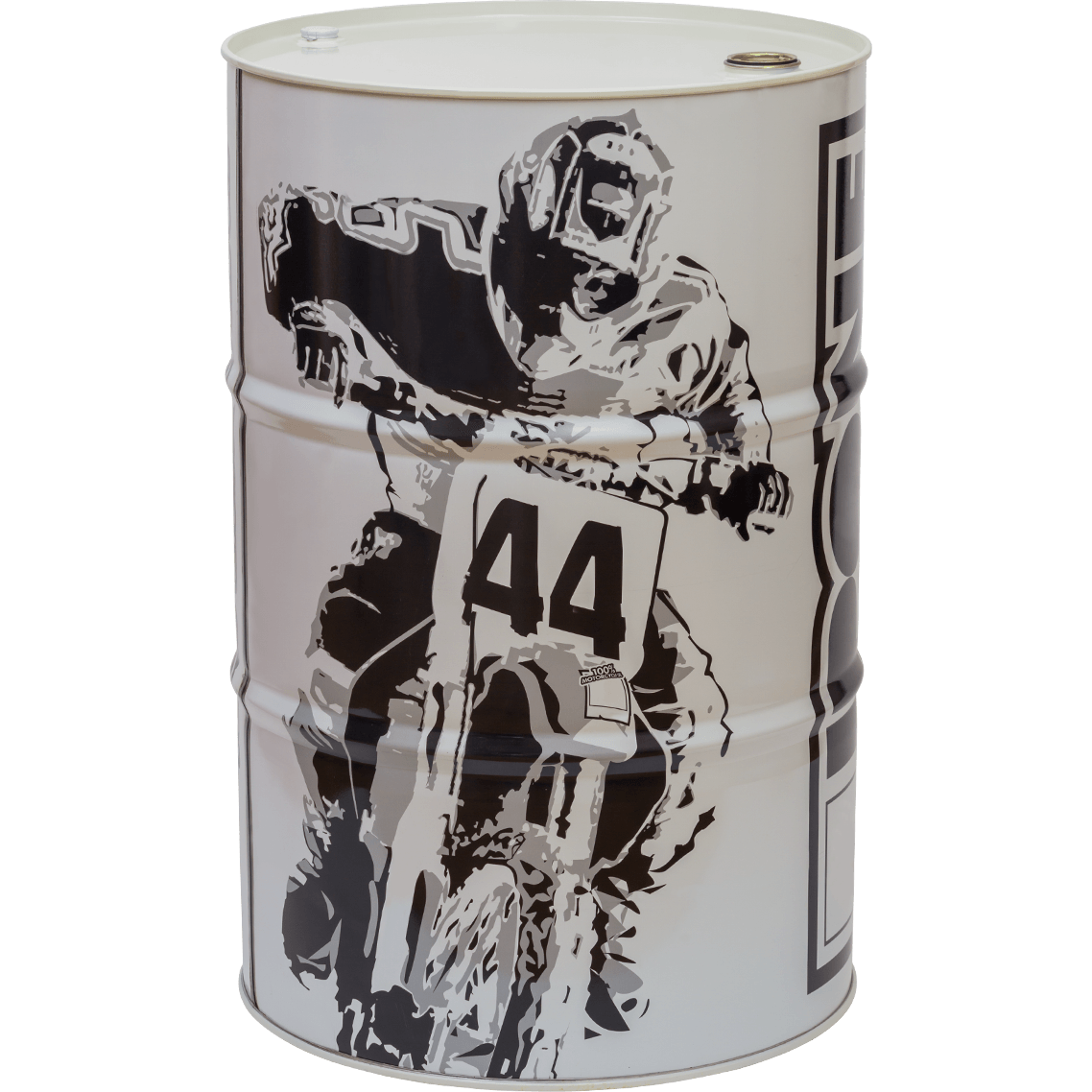

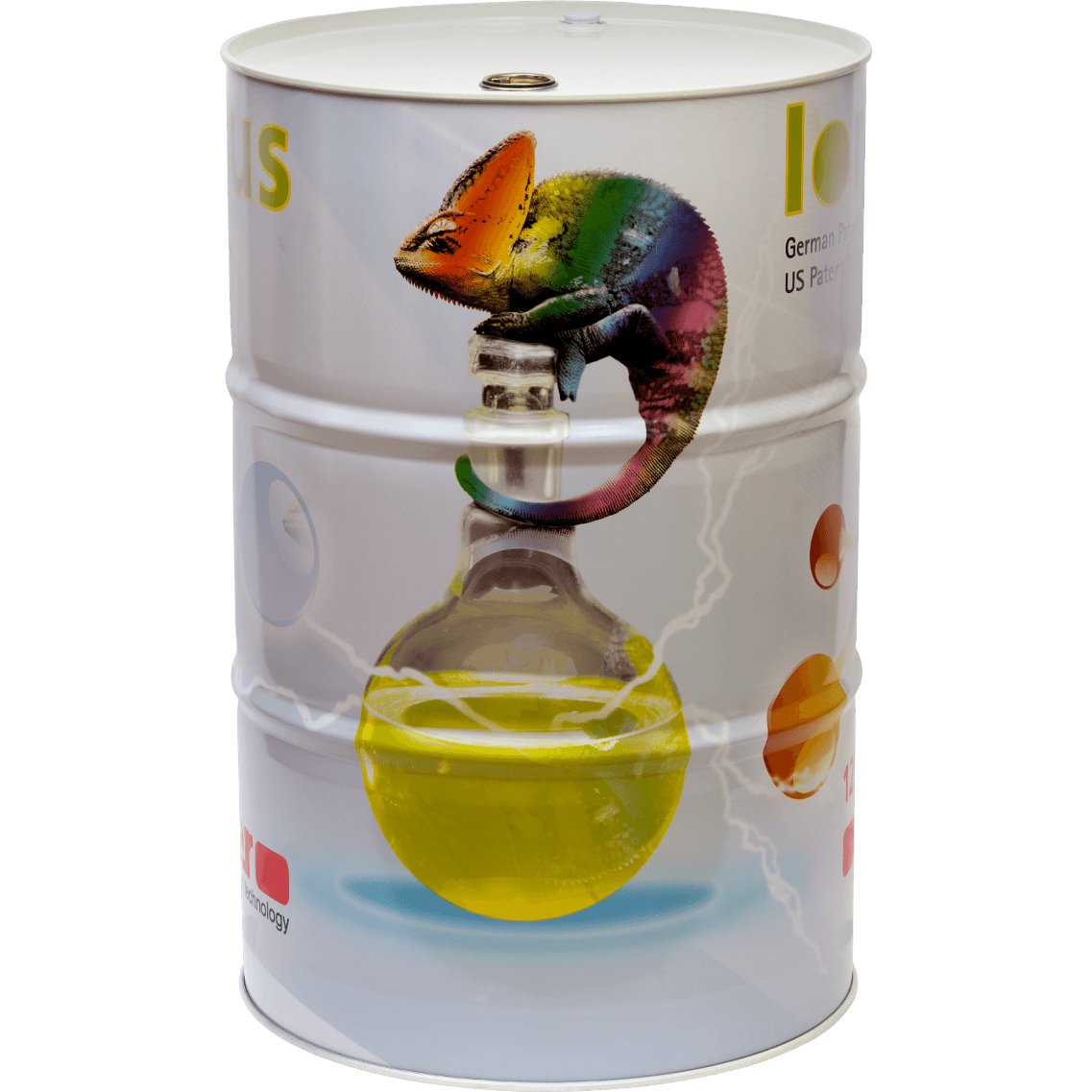

  • Numerous types of outside color and decoration are available, e.g. spray-painted finishes with offset printing, silk screening or galvanized surfaces.
  • With company logo or without company logo.
  • Phenolic lacquer coated for pesticides and special chemicals, or epoxyphenolic lacquer coated for storage of food products
  • Performance tests in compliance with the freight terms of hazardous substances
  • TSE certified
  • UN certified
Volume Diameter Height Steel Thickness Weight
Liter (Lt) Inner diameter (mm) Outer diameter (mm) Inner height (mm) Outer height (mm) Body (mm) Top (mm) (kg)
216.5 571.5 585 846 880 0.70 0,8 12.80
216.5 571.5 585 846 880 0.80 1.00 15.40
216.5 571.5 585 846 880 1.00 1.00 18.00
216.5 571.5 585 846 880 1.20 1.00 20.60
216.5 571.5 585 846 880 1.20 1.20 21.60

Weights of barrels may vary depending on DIN EN 10131 steel tolerances.
