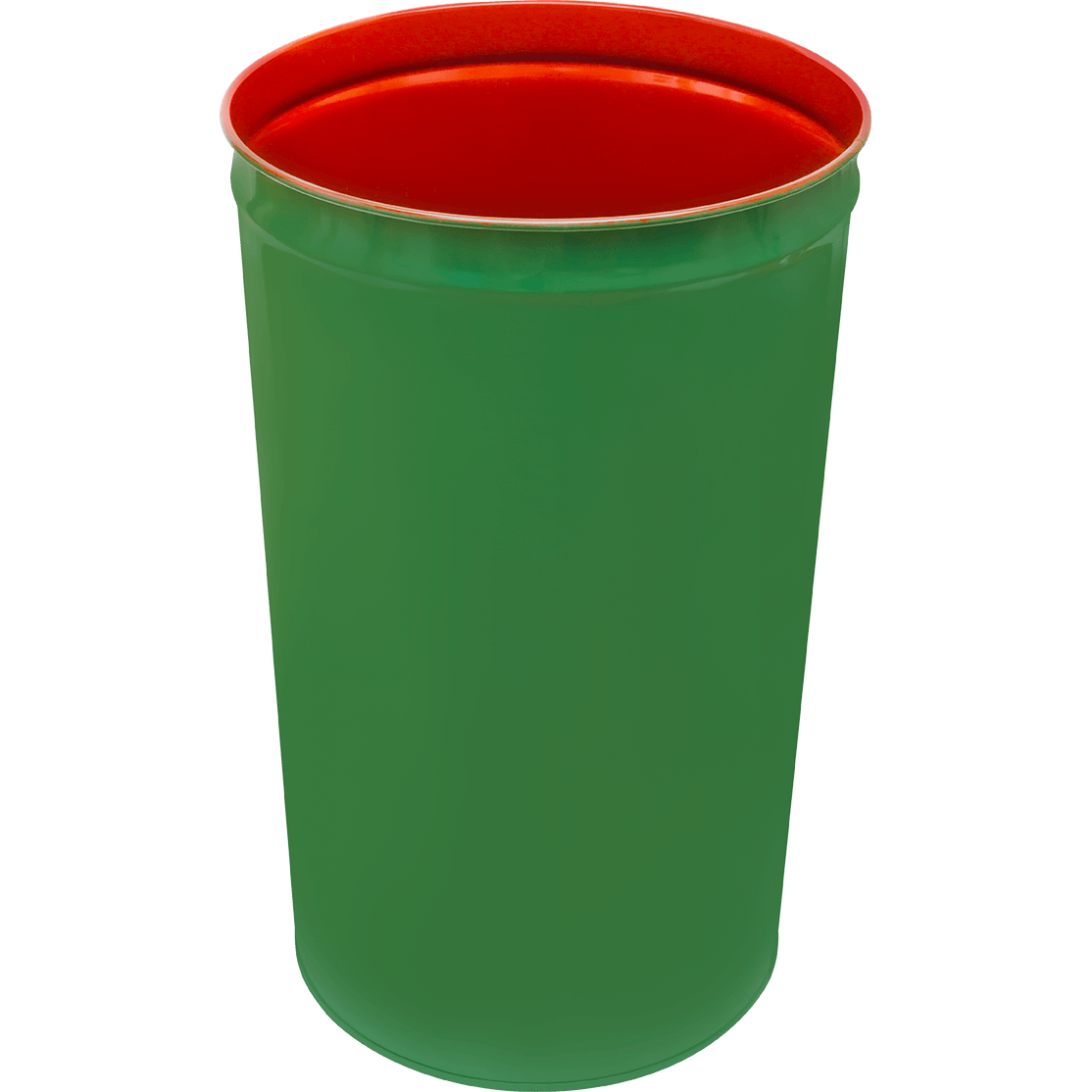

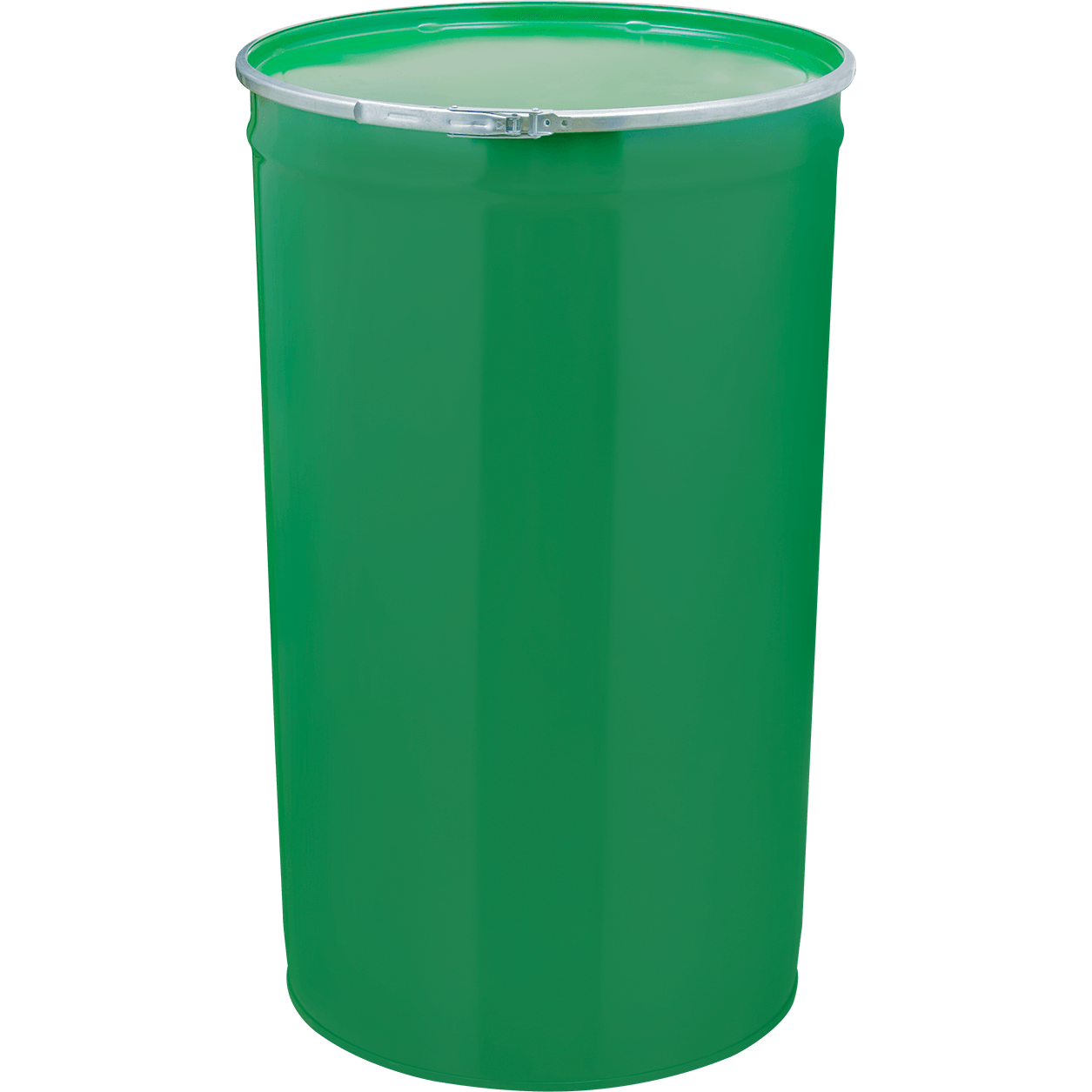

Conical Steel Drums
  • Steel Packaging
  •
  •

Raw Material: Cold rolled steel sheet
Top / Bottom End: Fully removable steel top-end galvanized ring, plastic pin

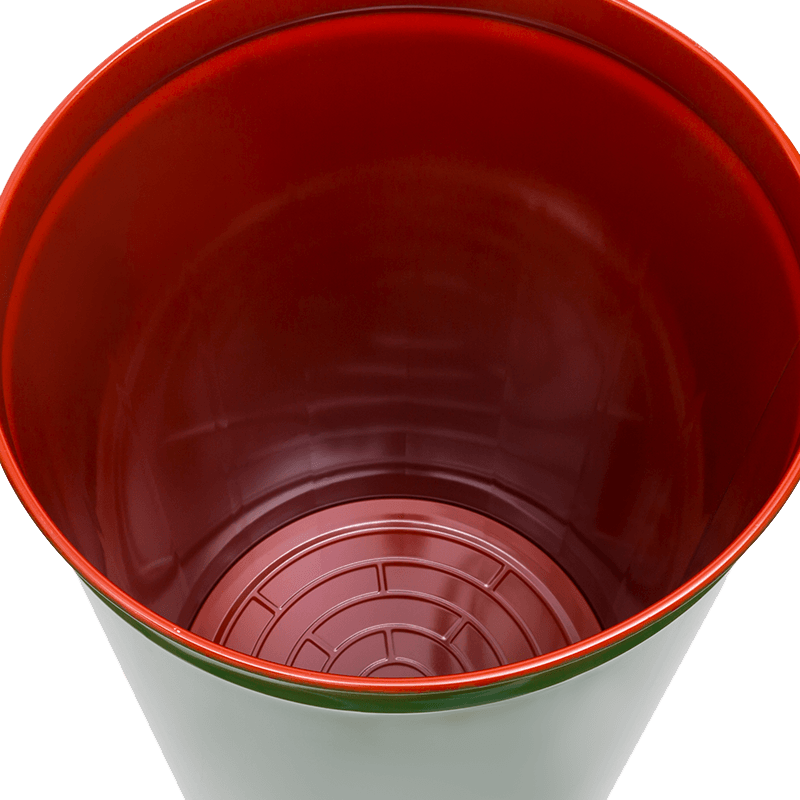

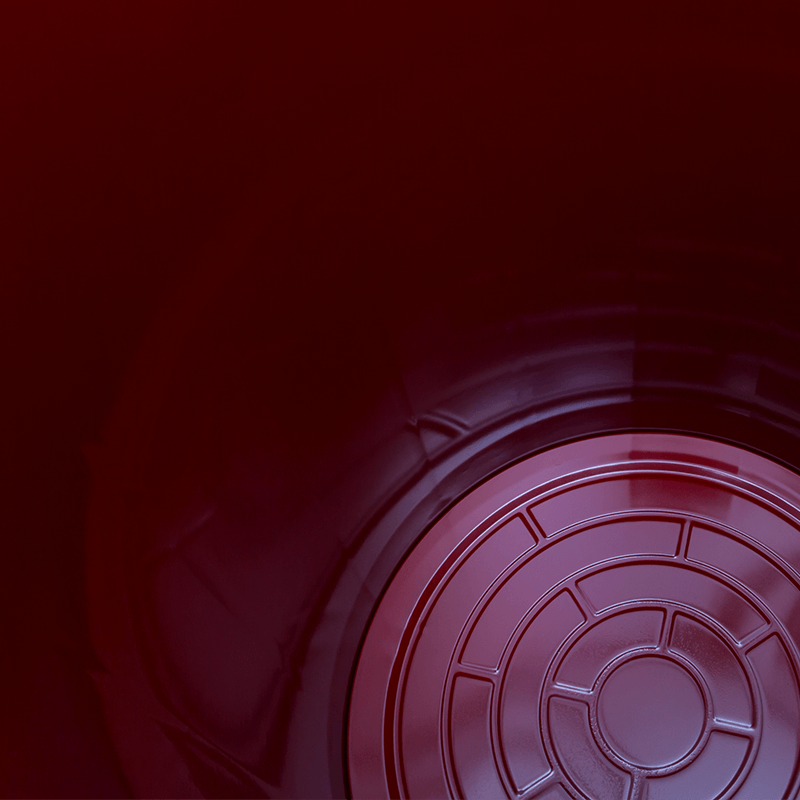

Inner / Outer Surface :Optionally inside coatings with epoxy,phenol or epoxy-phenol. Extensive color options in RAL catalaogue for outer surface.
Silk Screening: Numerous types of outside color and decoration are available, e.g. spray-painted finishes with offset printing, silk screening or galvanized surfaces.
Transportation : Optionally stretched filmed, covered by cardboard or wooden packaging in order to minimize the negative effects of carrying conditions.

Optionally 2” filling and 3/4” venting closure on the top.
( open-head steel drums with closures)

Volume Diamater Height Steel Thickness Weight
Liter (Lt) Inner Diameter (mm) Outer diameter (mm) Inner Height (mm) Outer Height (mm) Body (mm) Top / Bottom (mm) (kg)
175 506 522 890 910 0.80 0.60 13.50
194 506 522 930 955 0.70 0.80 13.10
194 506 522 930 955 0.70 0.60 12.50
194 506 522 930 955 0.60 0.60 11.60
218 526 585 955 975 0.70 0.60 13.50
218 526 585 955 975 0.60 0.60 12.40
218 526 585 955 975 0.80 0.80 15.40

Weights of barrels may vary depending on DIN EN 10131 steel tolerances.
