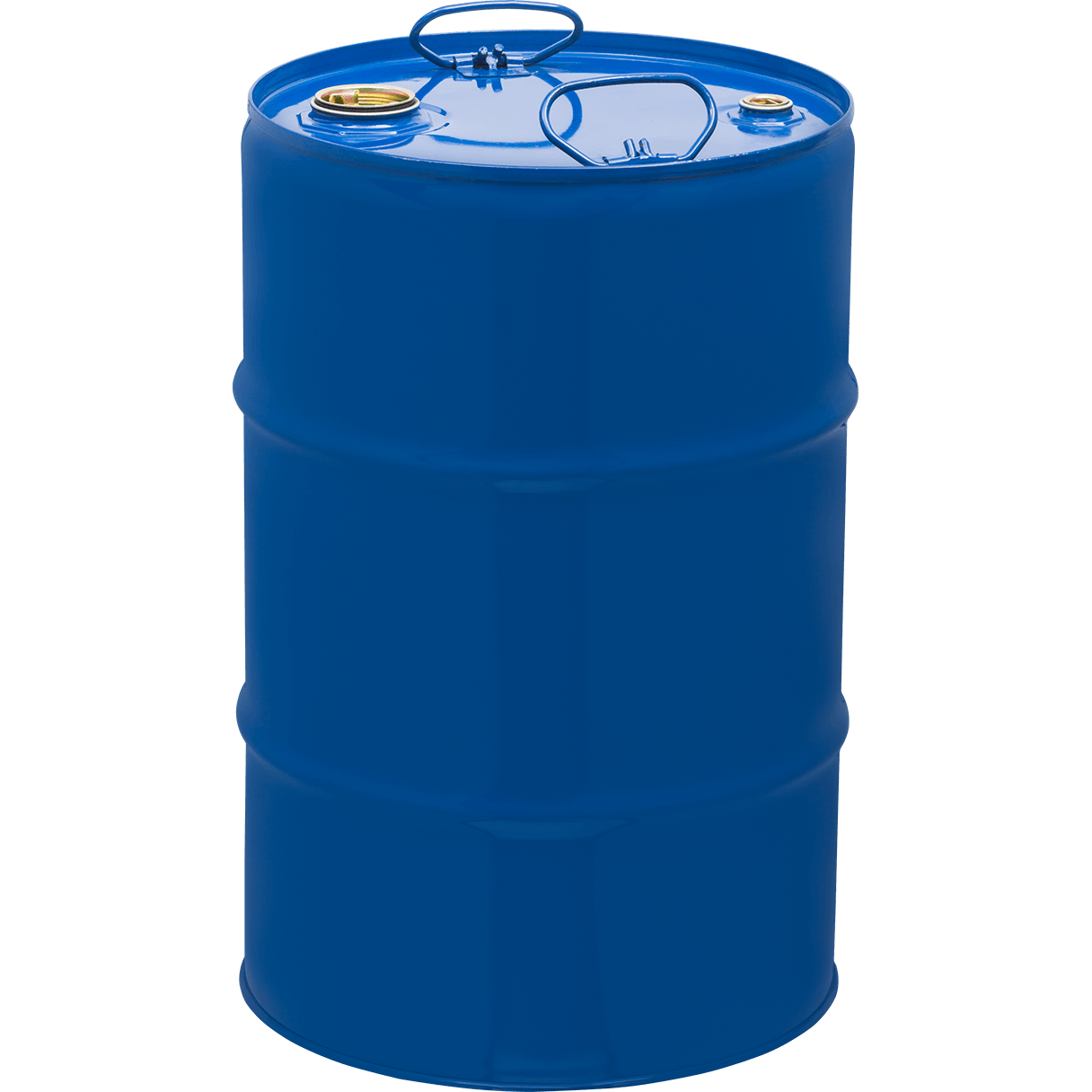

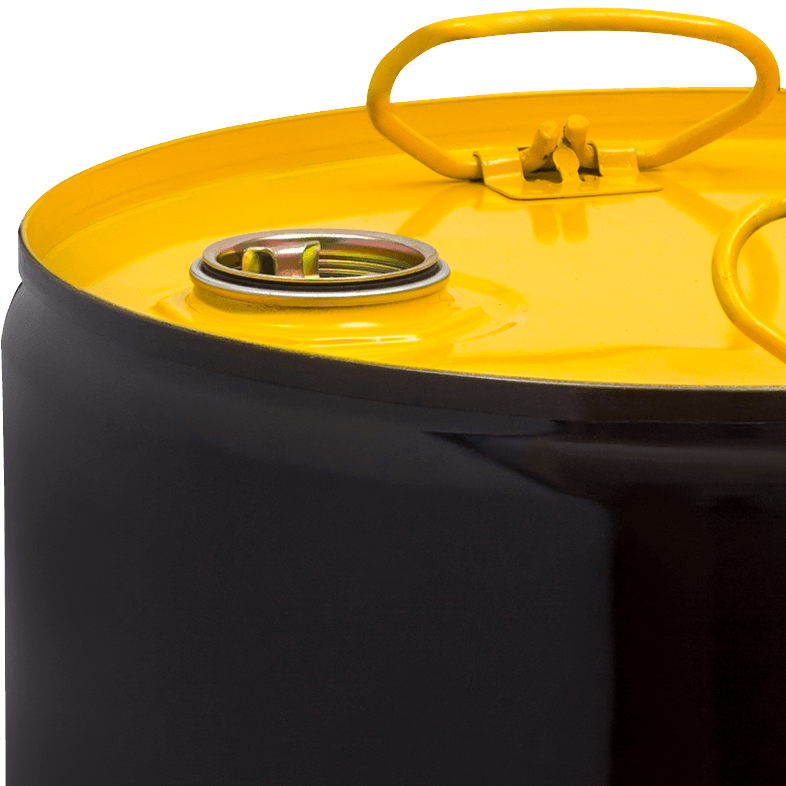

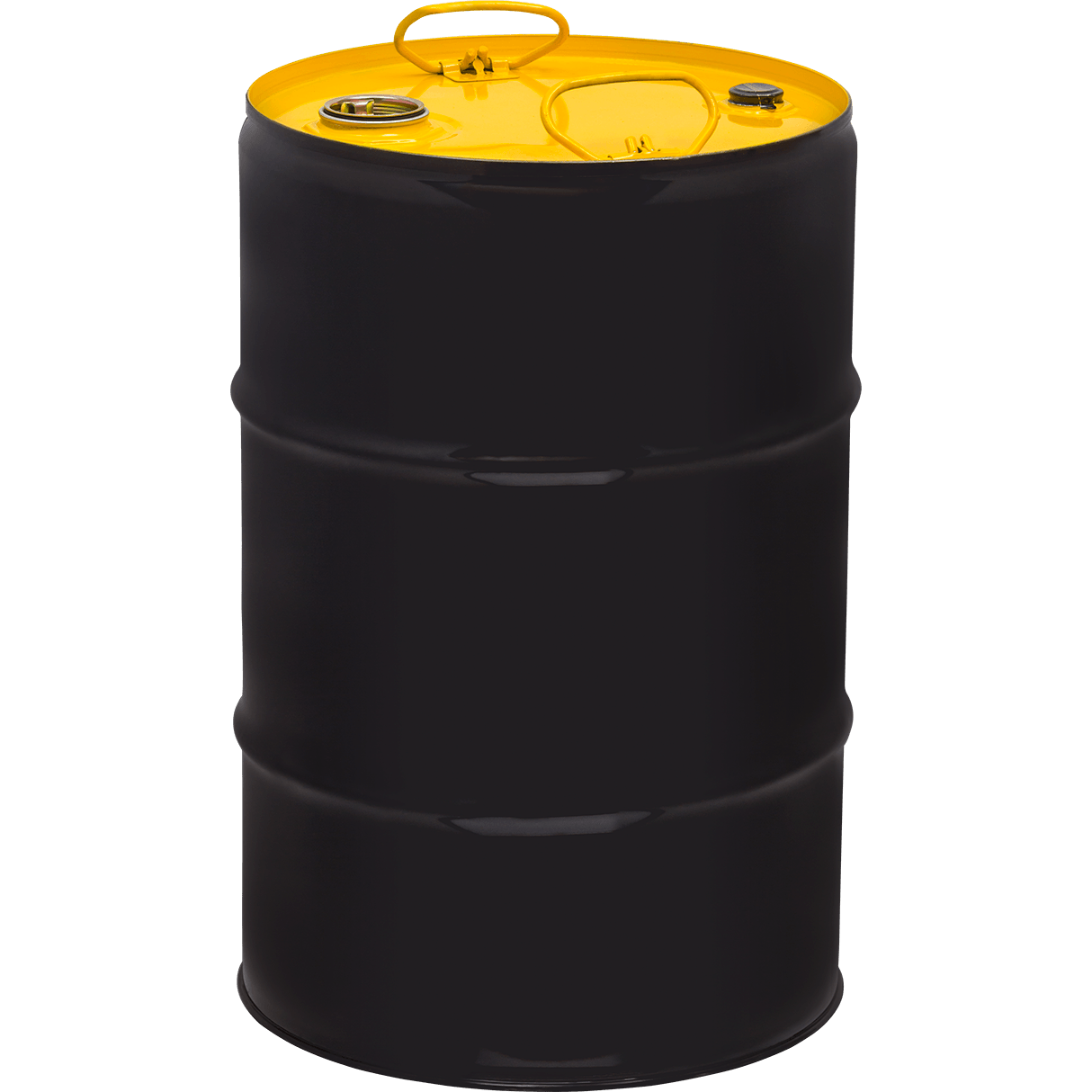

Small Steel Drums
  • Steel Packaging
  •
    20-30-60 Lt small drums, cylindrical open head or tight head

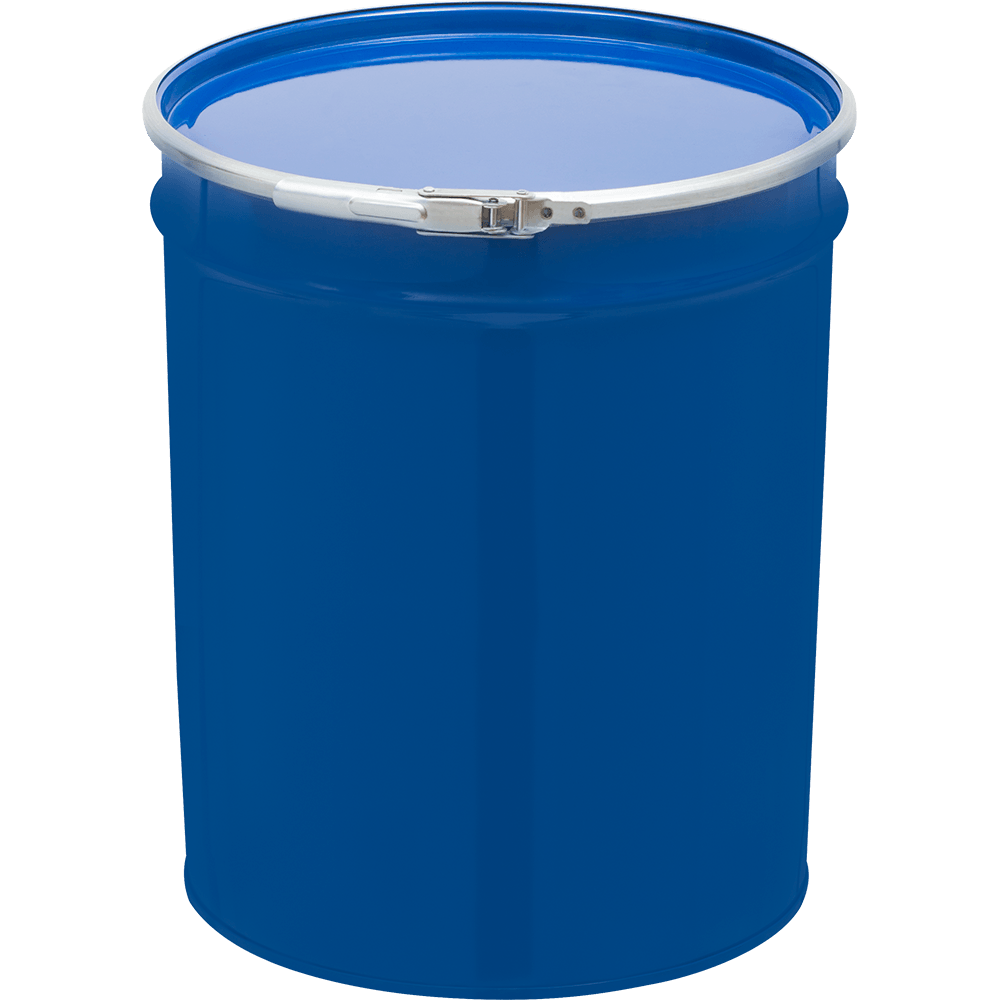

  • 20-30-40-60 Lt conical open top small drums
  • Produced of cold rolled steel sheet
  • In compliance with EN 10130 standards
  • Fully removable steel top-end , galvanized ring, plastic pin
  • Conventional body or corrugations upon request
  • 100 % leakproofness test
  • Numerous types of outside color and decoration are available, e.g. spray-painted finishes with offset printing, silk screening or galvanized surfaces.
  • With company logo or without company logo.
  • Phenolic lacquer coated for pesticides and special chemicals, or epoxyphenolic lacquer coated for storage of food products
  • Performance tests in compliance with the freight terms of hazardous substances
  • TSE certified
  • UN certified

30-60 LT CYLINDRICAL OPEN HEAD SMALL DRUMS

VOLUME DIAMETER HEIGHT STEEL THICKNESS WEIGHT
NOMINAL INNER OUTER INNER OUTER BODY TOP/BOTTOM
lt mm mm mm mm mm mm kg
30 359 374 351 375 0.60 0.60 4.00
60 359 374 596 612 0.60 0.60 5.20

30-60 LT CYLINDRICAL TIGHT HEAD SMALL DRUMS

VOLUME DIAMETER HEIGHT STEEL THICKNESS WEIGHT
NOMINAL INNER OUTER INNER OUTER BODY TOP/BOTTOM
lt mm mm mm mm mm mm kg
30 370 390 276 289 0.60 0.60 3.00
60 370 390 554 583 0.60 0.60 5.00

Weights of barrels may vary depending on DIN EN 10131 steel tolerances.
