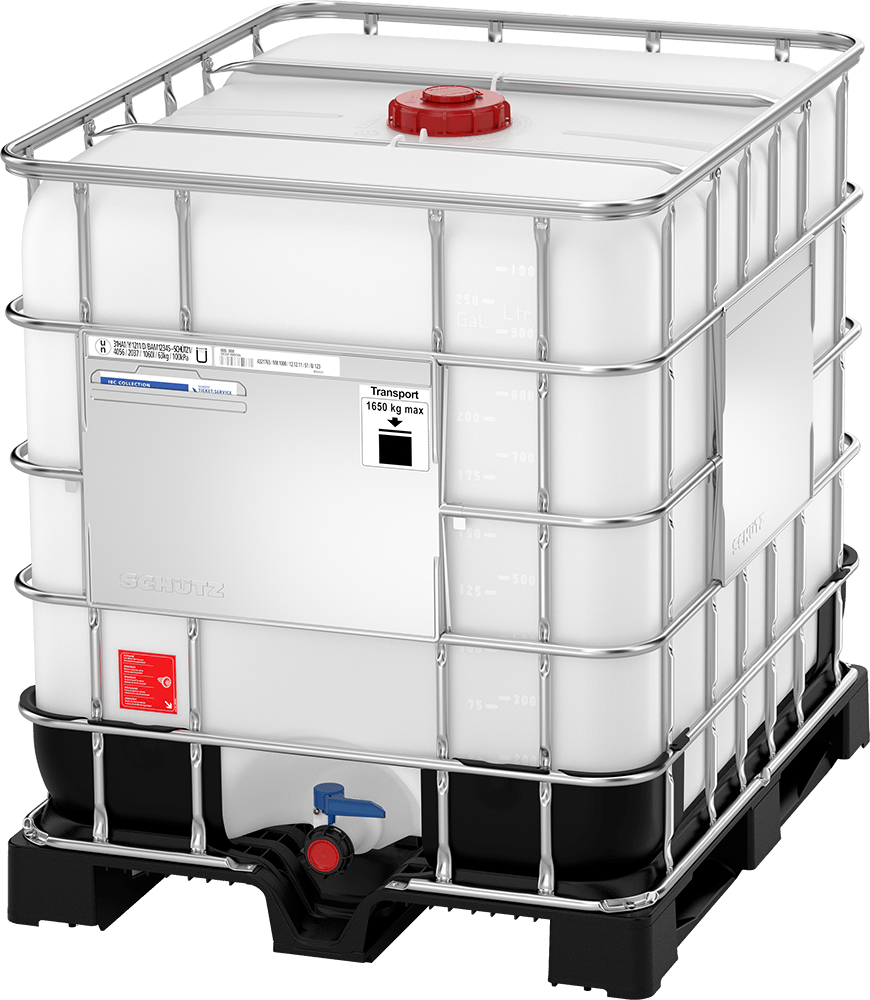

Plastic Pallet IBC
  • IBC Tank & Container

Material

Inner Bottle

HDPE produced by blowing technology
SMP protective barrier

Outer Container

Galvanized, welded steel cage

Certificates

UN 31HA 1/Y (Optional)

Filling Opening

Screw lid 150 mm
Screw lid 225 mm

Dimensions

1200mm x 1000mm x 1160mm

Weight

MX 1000   :   58 kg

Capacity

MX 1000   :   1.000 liter (275 gallons)

Discharge Valves

Integrated butterfly valve DN 50

Pallets

Full Plastic Skid

Dynamic Load

As per density
2 layers up to 1,5
1 layer for 1,5 and more

Static Load

Maximum 4 layers
